Hybrid Solar Inverter Over-load Protection
Hybrid Solar Inverter Over-load Protection

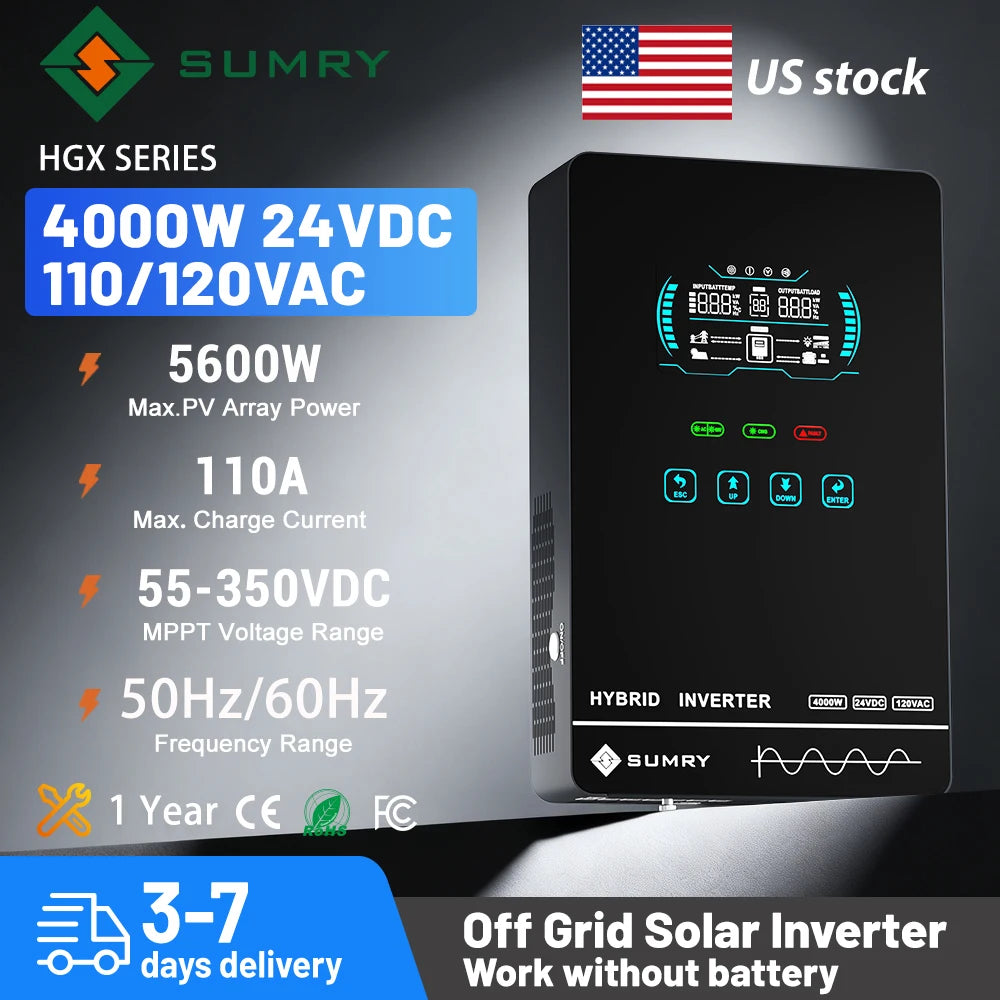

SPECIFICATIONS
Battery Voltage: 24VDC
Brand Name: SUMRY
Certification: CE
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Feature: work without battery,Cold restart function,hybrid solar inverter,Pure sine wave solar inverter,off grid solar inverter
Frequancy Range: 50Hz/60Hz (Auto sensing)
Maximum Conversion Eficiency: 98%
Model Number: HGX 4000W
Output Current: 20A
Output Frequency: 50/60hz
Output Type: SINGLE

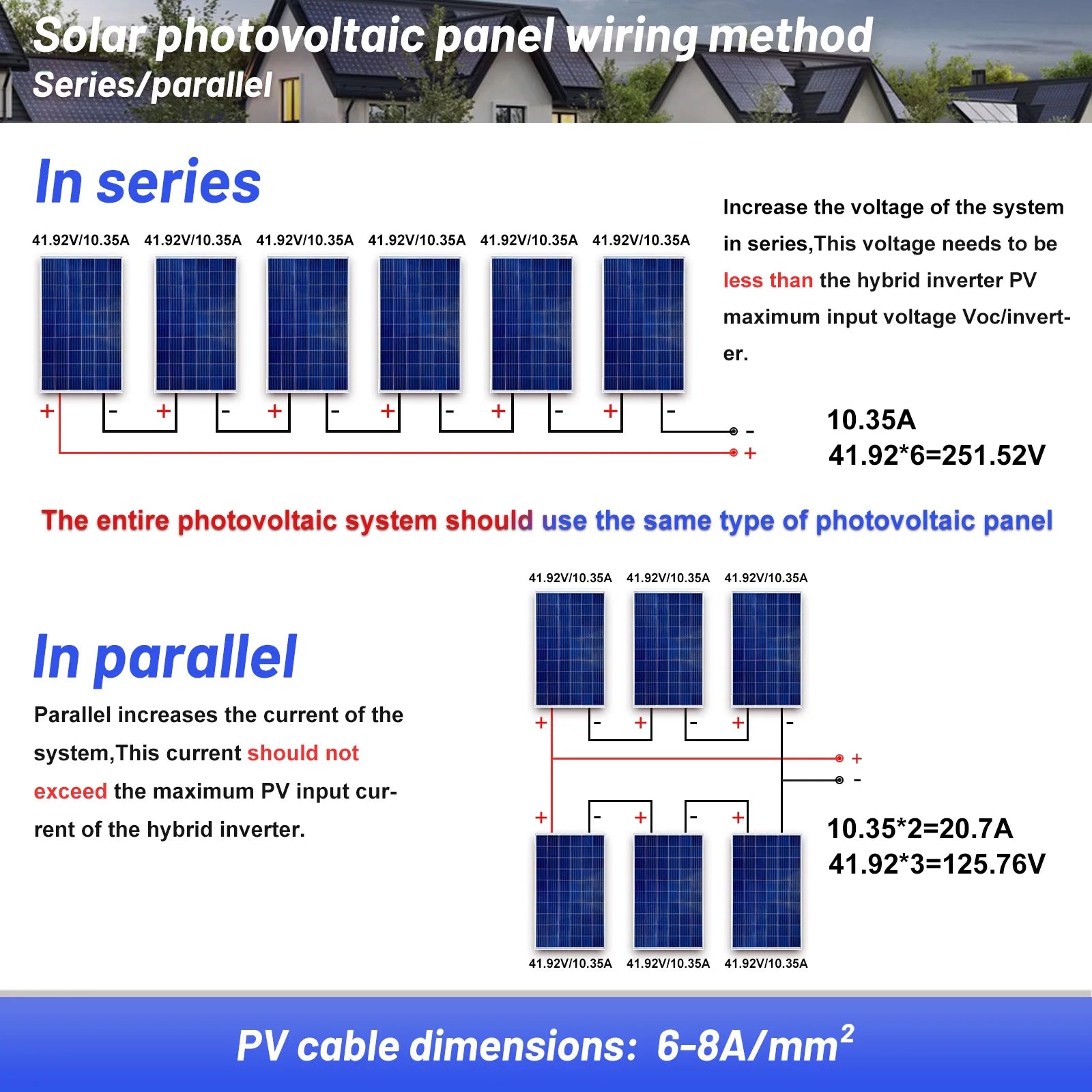

PV INPUT(DC): 55-350Vdc
Rated power: 4000W
Size: 400*250*89MM
Surge power: 2* rated power for 5 seconds
Weight: 8.9kg
Features :
1 off grid solar inverter

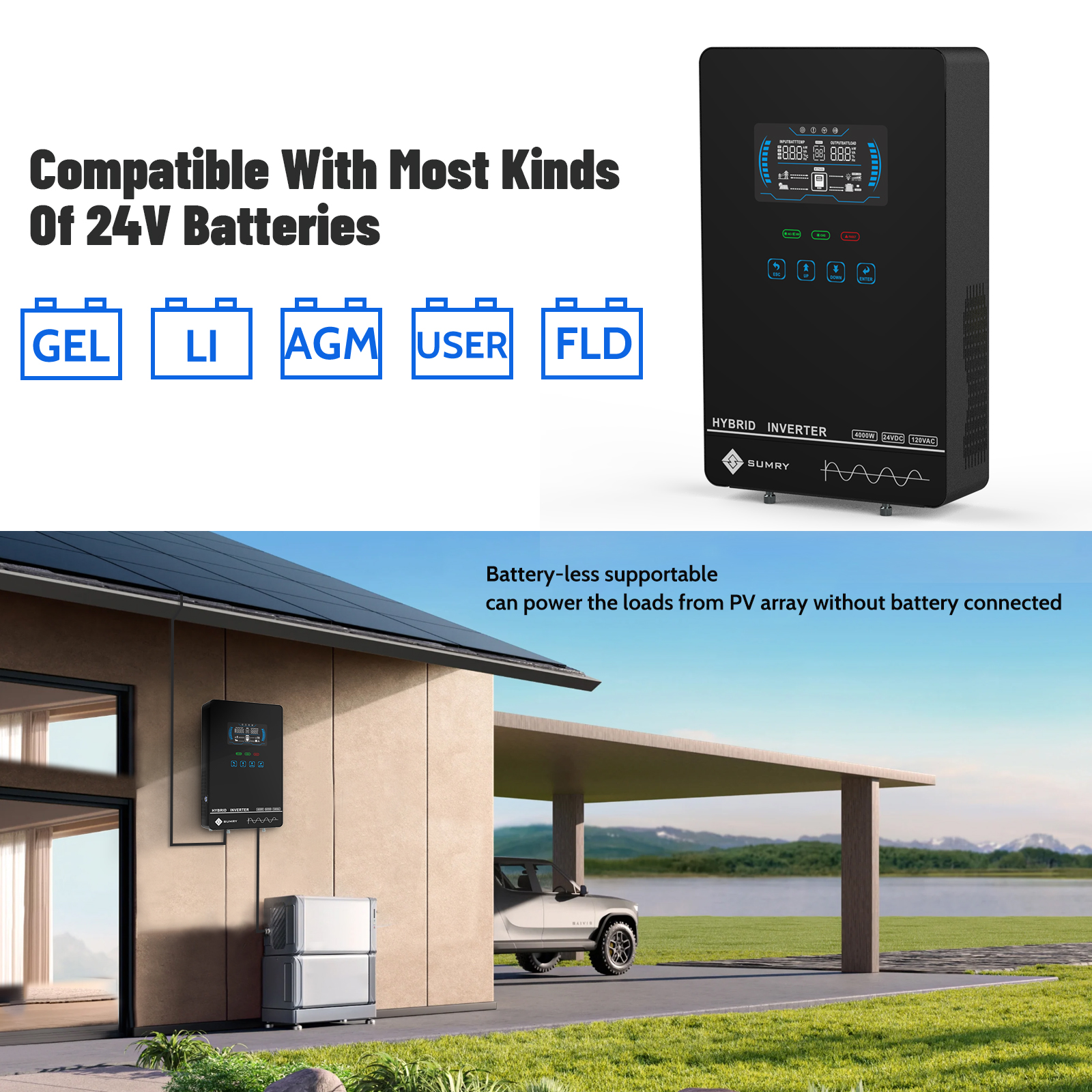

2 No battery function available

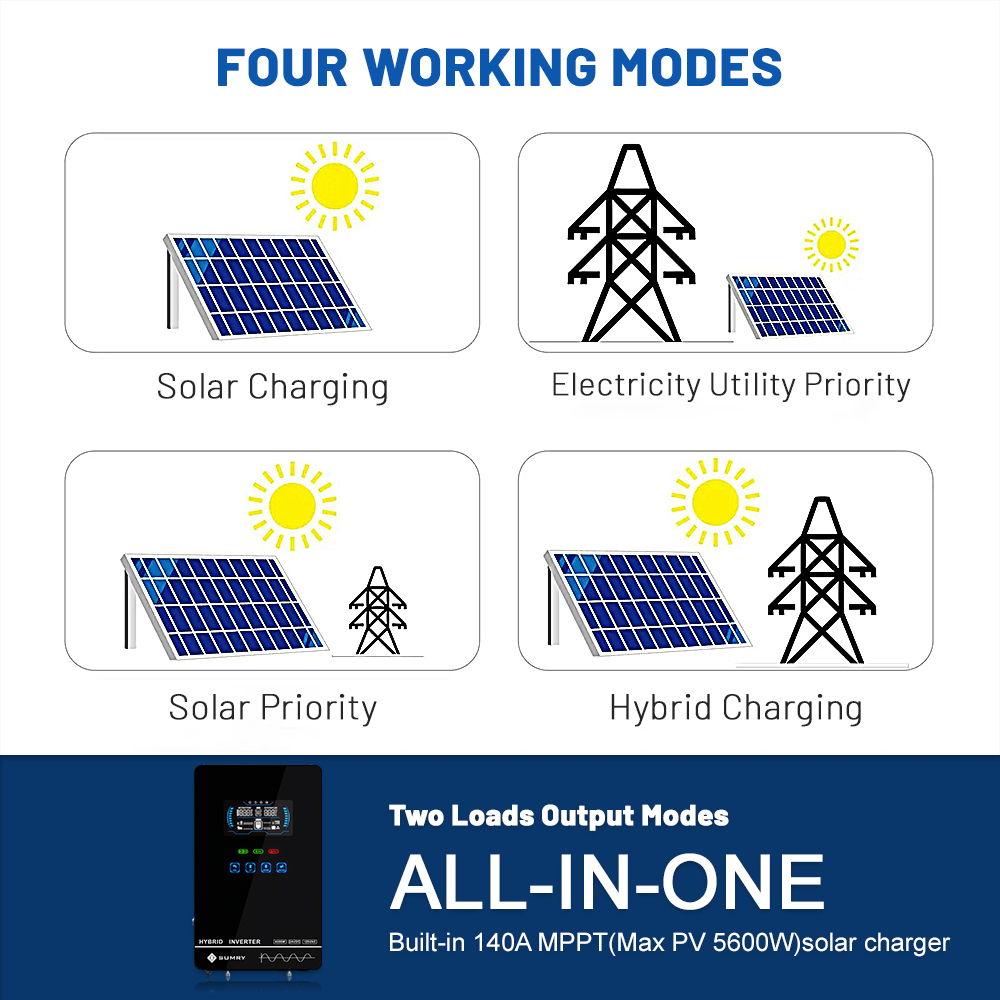

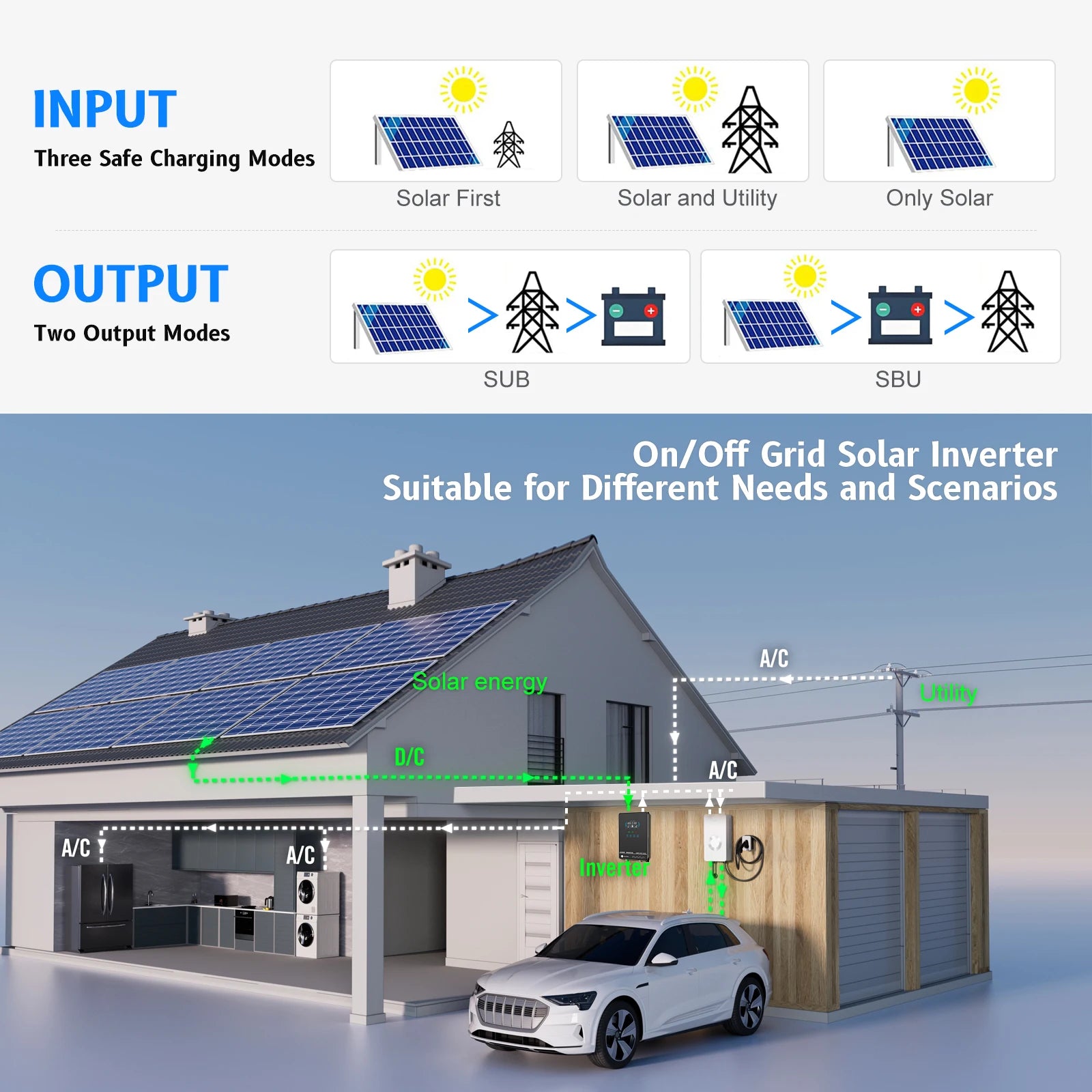

3 SBU mode :utility power,battery and PV power complement each other
4 Pure sine wave solarinverter
5 Unique glass top cover design with 6.25 inch LCD display and touchable buttons

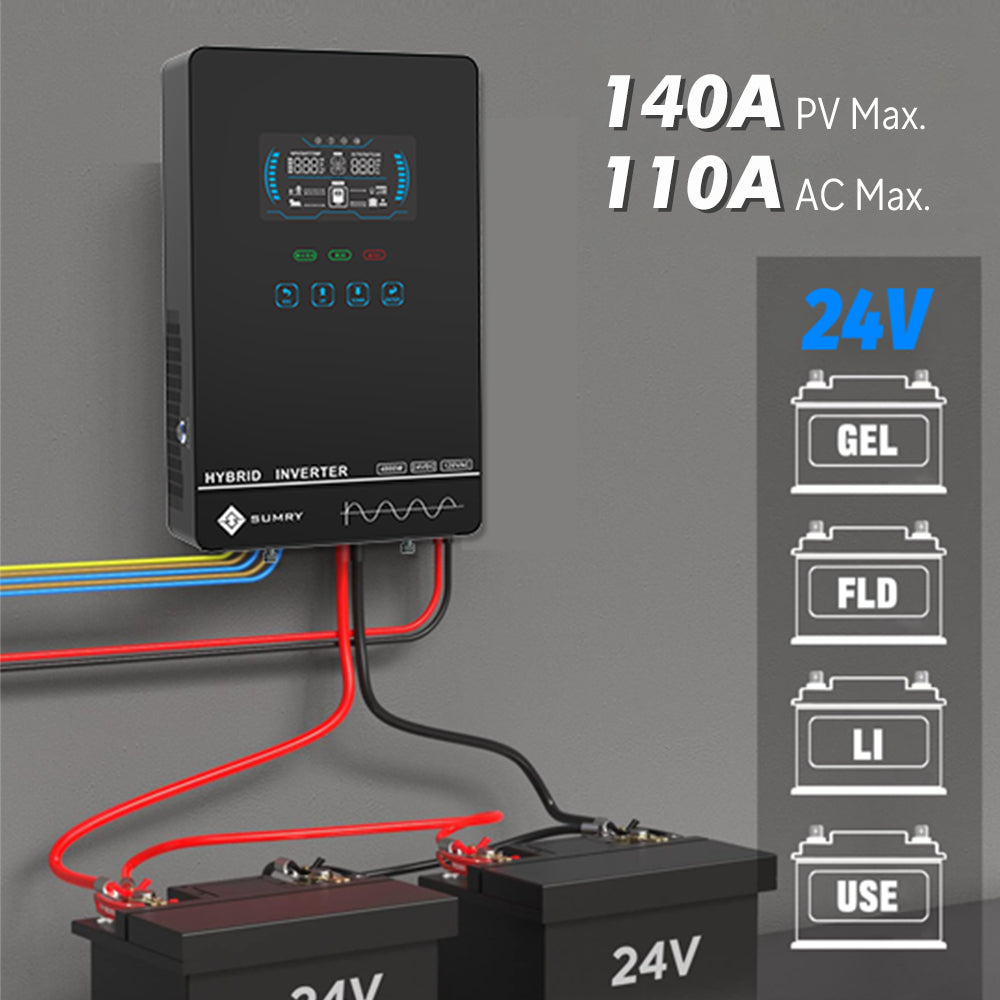

6 Built-in140A MPPT(Max PV 5600W)solar charger
7 High PV input range from 55V-350Vdc
8 Smart battery charger design for optimized battery performance
9 Configurable AC/Battery input priority via LCD setting
10 Auto restart while PV is recovering

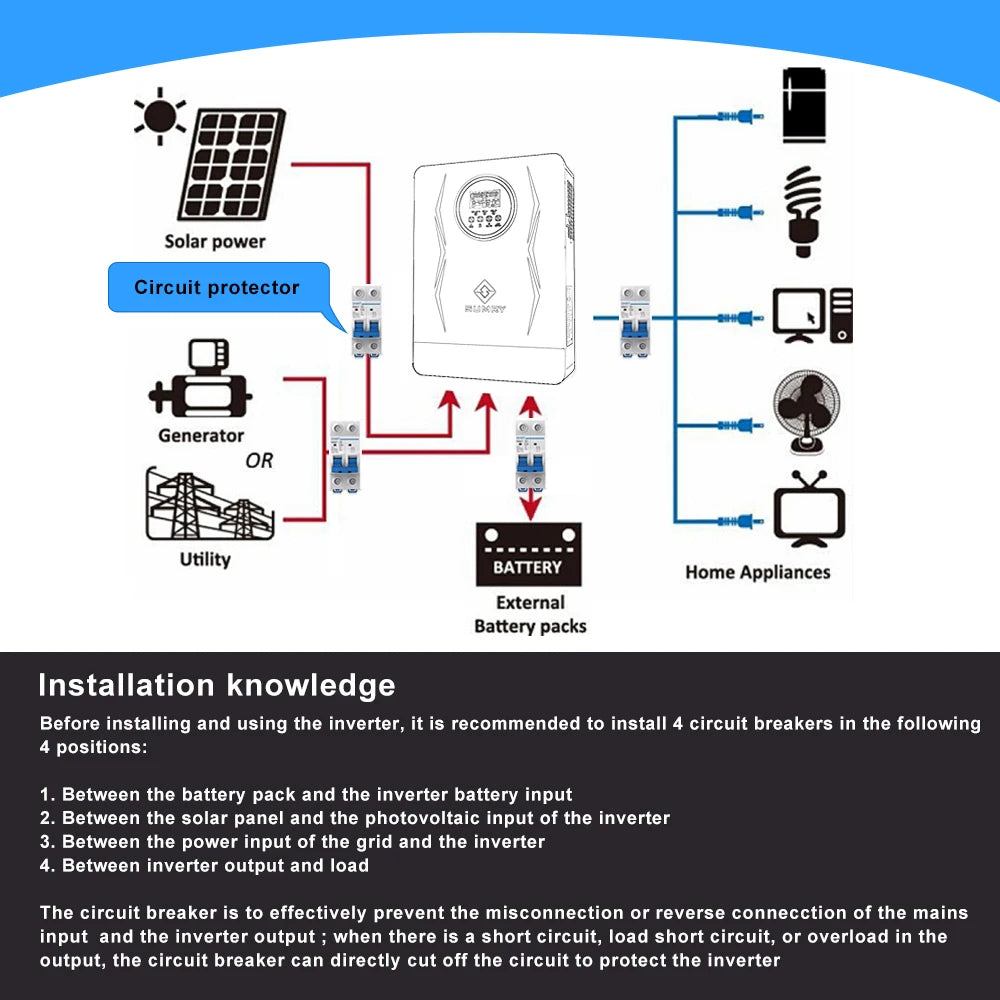

11 Over-load ,overtemperature and output short circuitprotection
12 Cold restart function
13 Built-in lithium battery automatic activation

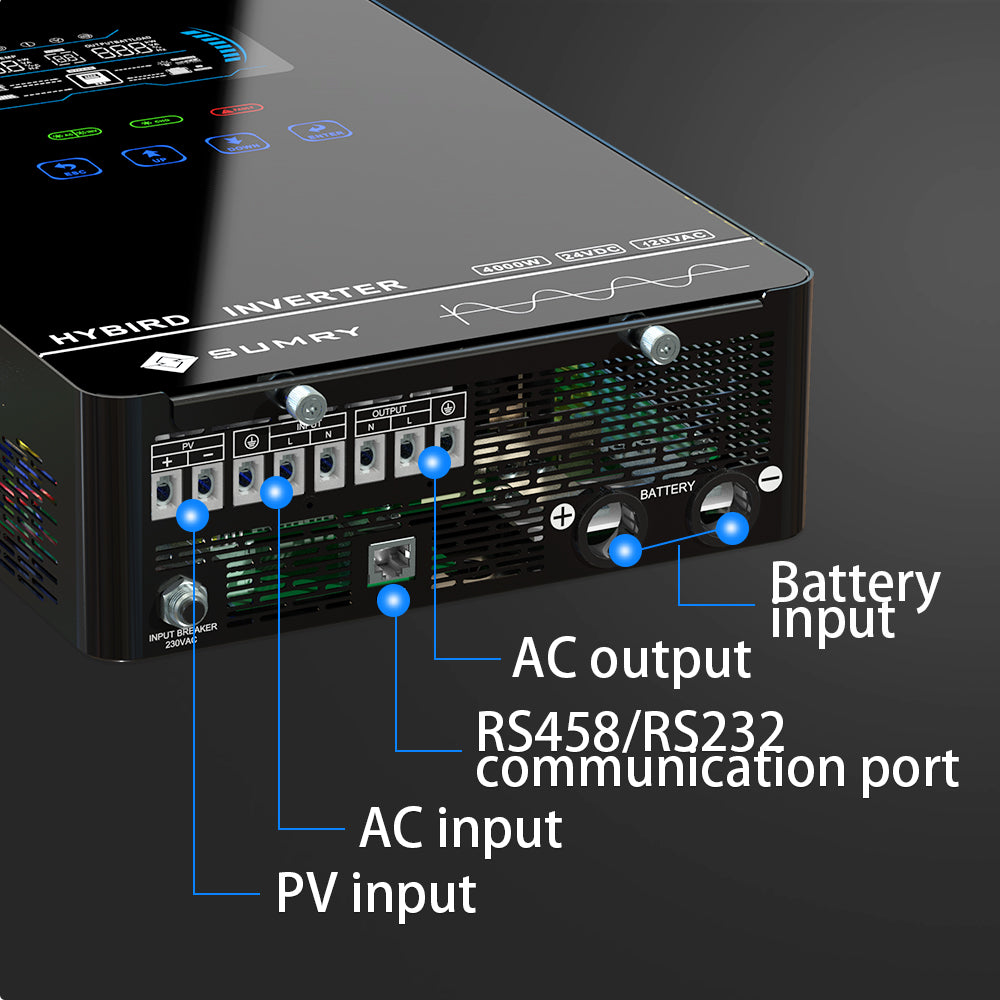

14 Communication with RS232/RS485
15 WiFi monitoring function (optional )
16 Anti-dust kit for harsh environment(optional)
17 Restore default Settings with one click

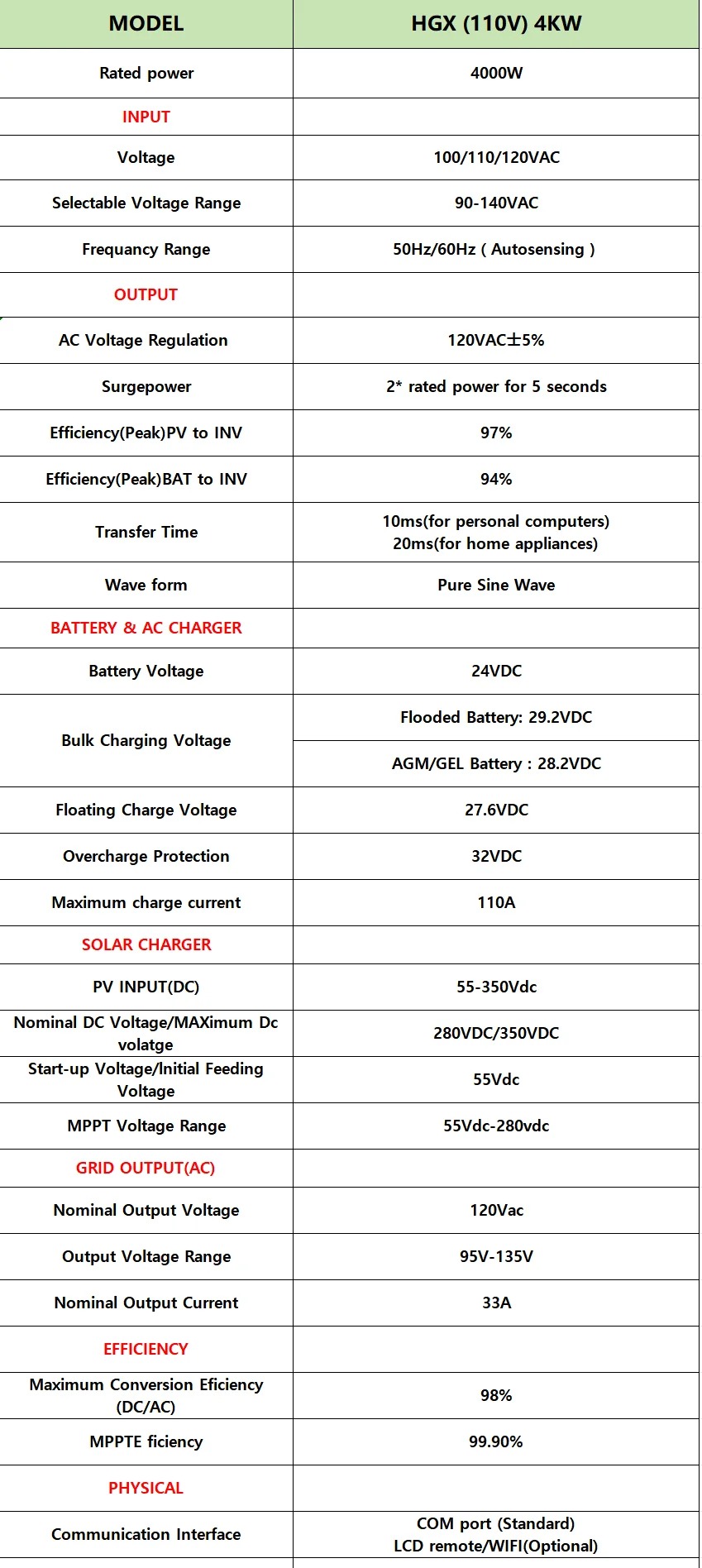

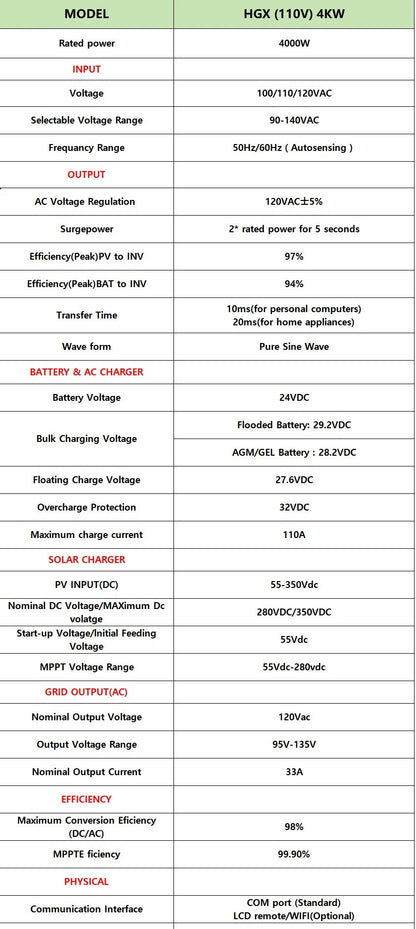

SUMRY HGX series machine specification ：
